sip_accounts

0 rows


Columns

Column Type Size Nulls Auto Default Children Parents Comments
sip_account_id INT 10 √ null
sip_account_custom_item_fields.sip_account_id sip_account_custom_item_fields_ibfk_1 C
sip_account_custom_patron_fields.sip_account_id sip_account_custom_patron_fields_ibfk_1 C
sip_account_item_fields.sip_account_id sip_account_item_fields_ibfk_1 C
sip_account_patron_attributes.sip_account_id sip_account_patron_attributes_ibfk_1 C
sip_account_screen_msg_regexs.sip_account_id sip_account_sip_account_screen_msg_regexs_ibfk_1 C
sip_account_sort_bin_mappings.sip_account_id sip_account_sort_bin_mappings_ibfk_1 C
sip_account_system_preference_overrides.sip_account_id sip_account_system_preference_overrides_ibfk_1 C
sip_institution_id INT 10 null
sip_institutions.sip_institution_id sip_accounts_ibfk_1 C

Foreign key to sip_institutions.sip_institution_id
ae_field_template VARCHAR 255 √ NULL
allow_additional_materials_checkout TINYINT 3 √ NULL
allow_empty_passwords TINYINT 3 √ NULL
allow_fields VARCHAR 255 √ NULL
av_field_template VARCHAR 255 √ NULL
blocked_item_types VARCHAR 255 √ NULL
checked_in_ok TINYINT 3 √ NULL
convert_nonprinting_characters VARCHAR 10 √ NULL
cr_item_field VARCHAR 255 √ NULL
ct_always_send TINYINT 3 √ NULL
cv_send_00_on_success TINYINT 3 √ NULL
cv_triggers_alert TINYINT 3 √ NULL
da_field_template VARCHAR 255 √ NULL
delimiter VARCHAR 10 √ '|'
disallow_overpayment TINYINT 3 √ NULL
encoding VARCHAR 10 √ NULL
error_detect TINYINT 3 √ NULL
format_due_date TINYINT 3 √ NULL
hide_fields VARCHAR 255 √ NULL
holds_block_checkin TINYINT 3 √ NULL
holds_get_captured TINYINT 3 √ NULL
inhouse_item_types VARCHAR 255 √ NULL
inhouse_patron_categories VARCHAR 255 √ NULL
login_id VARCHAR 255 null

Staff userid for SIP2 authentication
lost_block_checkout TINYINT 3 √ NULL

actual tinyint, not boolean
lost_block_checkout_value TINYINT 3 √ NULL

actual tinyint, not boolean
lost_status_for_missing TINYINT 3 √ NULL

actual tinyint, not boolean
overdues_block_checkout TINYINT 3 √ NULL
payment_type_writeoff VARCHAR 10 √ NULL
prevcheckout_block_checkout TINYINT 3 √ NULL
register_id INT 10 √ NULL
cash_registers.id sip_accounts_ibfk_2 N

Foreign key to cash_registers.id
seen_on_item_information VARCHAR 255 √ NULL
send_patron_home_library_in_af TINYINT 3 √ NULL
show_checkin_message TINYINT 3 √ NULL
show_outstanding_amount TINYINT 3 √ NULL
terminator enum('CR', 'CRLF') 4 'CRLF'

Indexes

Constraint Name Type Sort Column(s)
sip_accounts_s_pk Primary key Asc sip_account_id
account_login_id Must be unique Asc login_id
PRIMARY Must be unique Asc sip_account_id
sip_accounts_ibfk_1 Performance Asc sip_institution_id
sip_accounts_ibfk_2 Performance Asc register_id

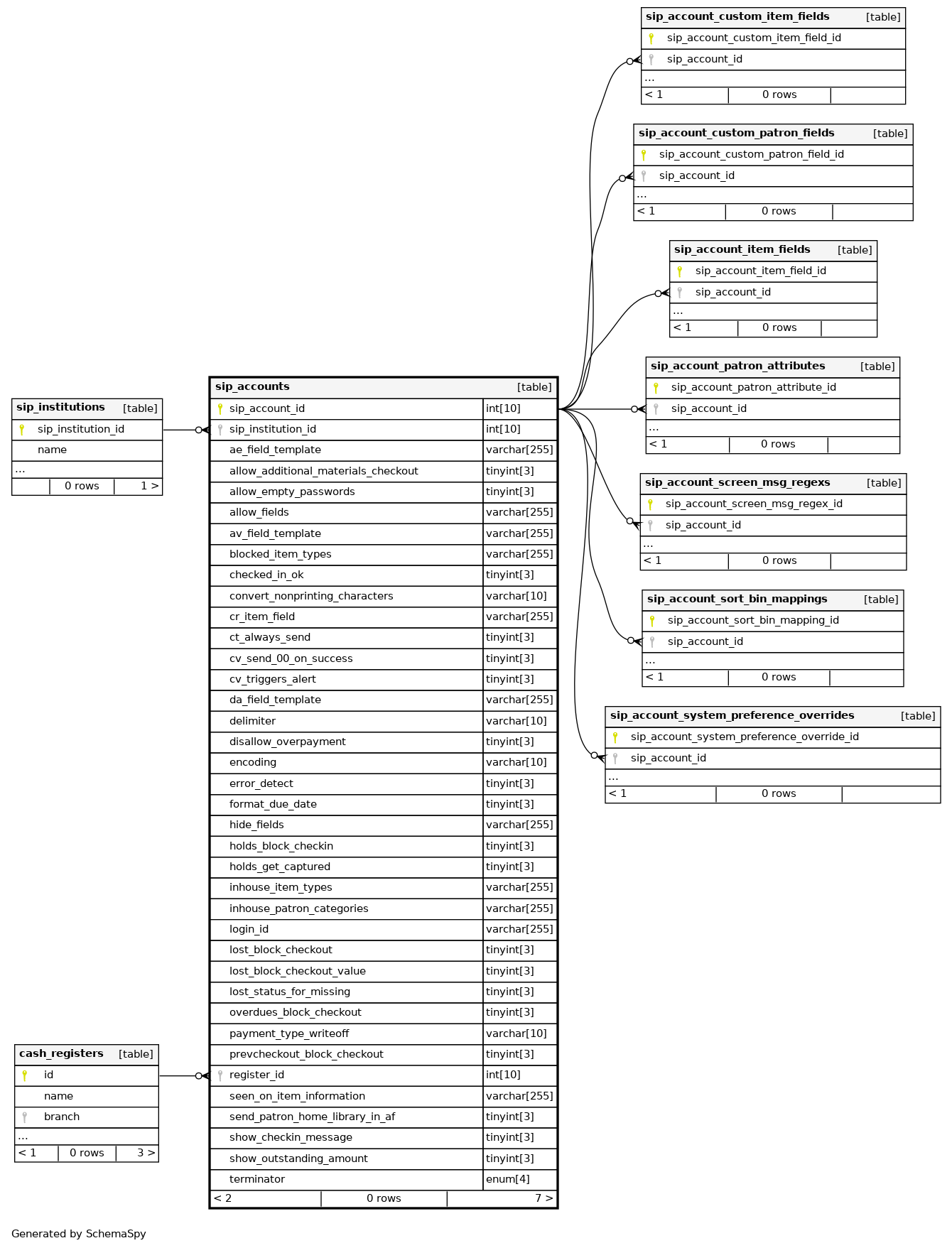

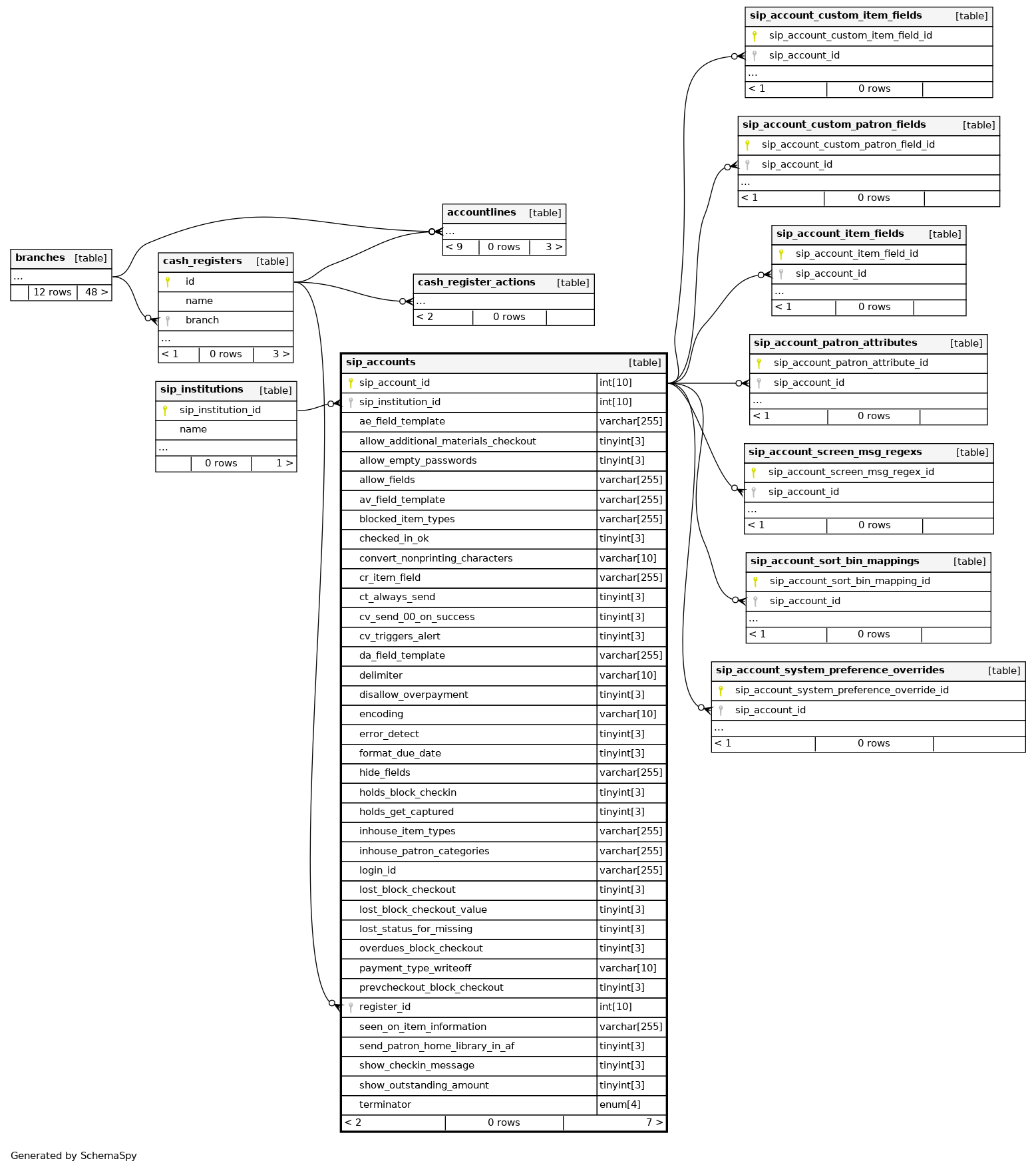

Relationships

Close relationships within degrees of separation
